GRUNDFOS pumps, high performance and reliability, suitable for residential, municipal, and industrial solutions.

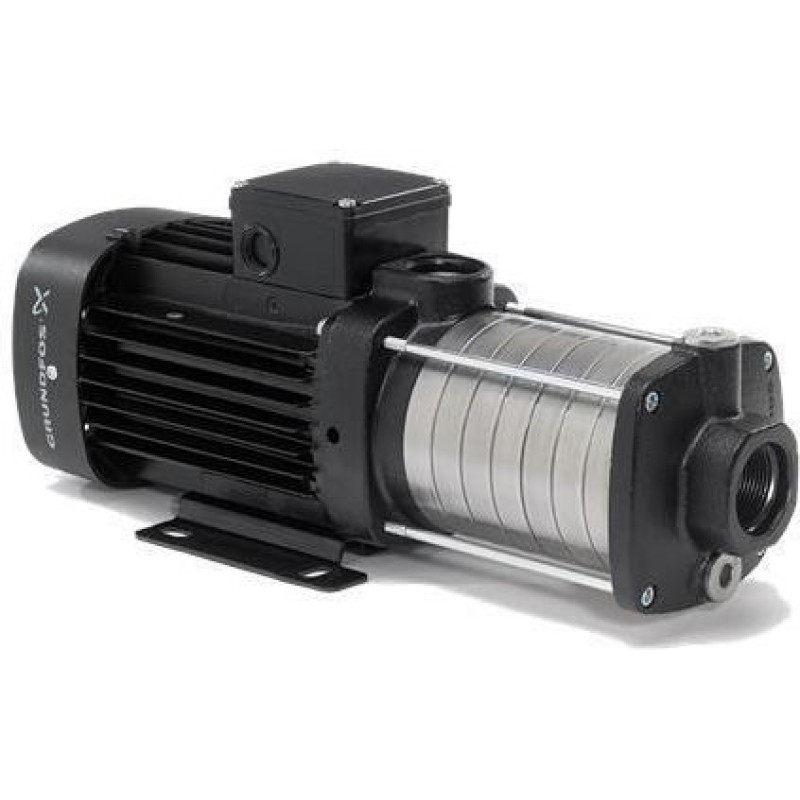

The CM is a reliable, quiet, and compact horizontal end-suction pump.

CM-A SERIES:

• Pump head and base made of cast iron.
• Other parts in contact with the liquid made from AISI 304.

Technical Characteristics:

• Power P2 (Kw): 0.46
• Power P2 (Hp): 0.6
• Voltage (Volt): 380 Volt/50 Hz
• Maximum head (M): 37
• Maximum flow (m3/h): 2.5
• Max pressure at the specified temperature: 10 bar / 40 °C
• Max pressure at the specified temperature: 6 bar / 90 °C
• Inlet diameter Φ (Inch-mm): 1"-25mm
• Outlet diameter Φ (Inch-mm): 1"-25mm
• Pump casing: Cast iron
• Impeller: Stainless steel
• Net weight: 11.6 kg
• Gross weight: 14.1 kg

Manufacturer

Surface Water Pumps Grundfos

Specifications

Product Number

96935391

Main Specifications

Type

Multistage

Power Source

Electric

Placement

Horizontal

Automatic Suction

No

Centrifugal

No

Firefighting

No

Power Type

Three-Phase

Set

No

Technical Specifications

Power

460 W
