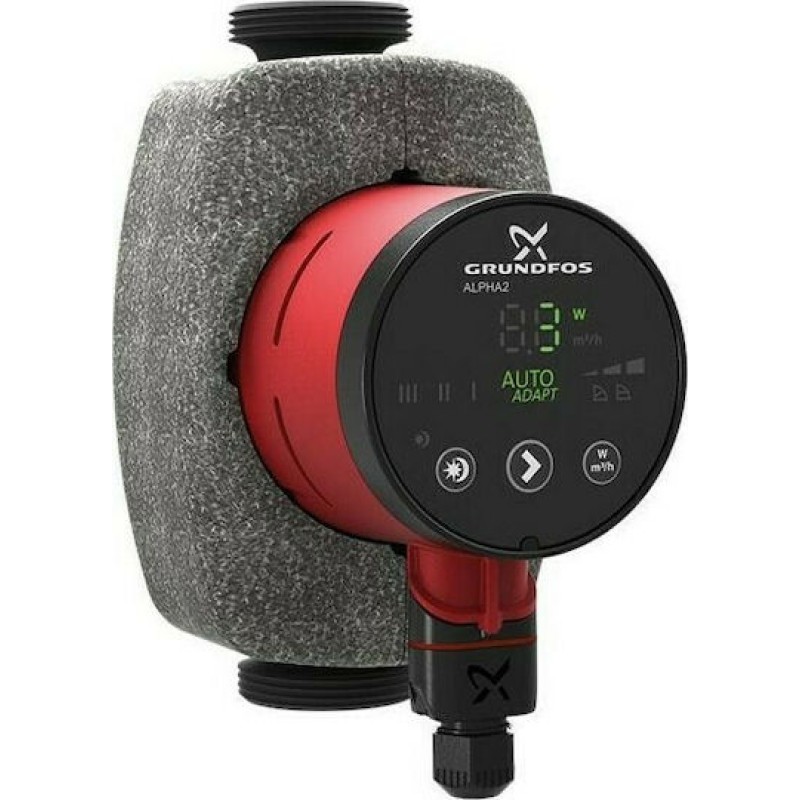

With the new ALPHA2, there is no need to worry about complex pump settings anymore. Just install the pump and leave it on the factory setting, AUTOADAPT. The new ALPHA2 will automatically analyze the heating system, find the optimal setting, and continue to adjust its operation as parameters change.

Features and benefits:

• Better performance with top efficiency in the market (EEI≤0.15) in a more compact design.
• Flow indication for troubleshooting and balancing.
• AUTOADAPT selects the best operation curve for efficiency and convenience.
• Innovative terminal box facilitates access and simplifies pump connection.
• Equipped with an insulating sleeve.

Use:

GRUNDFOS has made new and very significant design changes that now allow you to use the new ALPHA2 in cooling applications with a minimum circulating fluid temperature of +2°C.

Manufacturer

Circulator Pumps Grundfos

Specifications

Electronic

Yes

Application

Heating

Maximum Pressure Head (m)

6 m

Connection Diameter

25 mm

Length

180 mm
